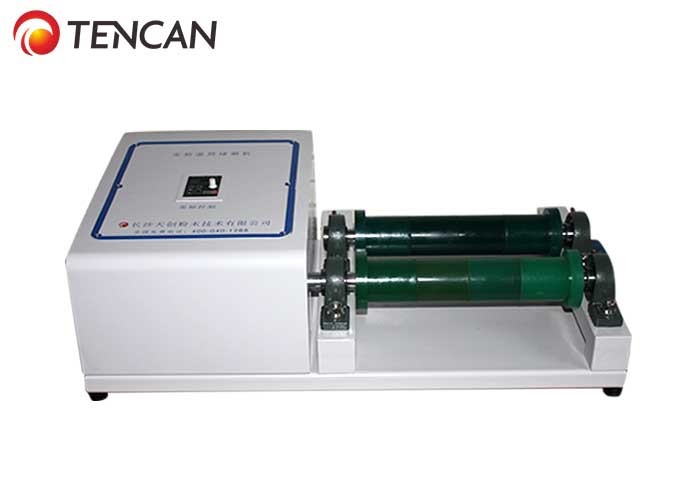

5L 110 - 220v Mini Roll Laboratory Ball Mill With Uniform Granularity & High Efficiency
Overview
Mini Roll Laboratory Ball Mill is a kind of ball mill machine used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
Working Principle
After starting-up the machine, the grinding media and the materials inside the mill jar are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.
Applications
Mini Roll Laboratory Ball Mill is widely used to lots of industries such as electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
Features
1. Compact structure, easy operation
2. High efficiency and uniform granularity in grinding effects.
3. Milling jar in different size can be put on the driven rubber roller within a certain range by means of adjusting space between the rubber rollers.
4. It is convenient to change jar's location and suitable for both wet and dry grinding.
Technical Parameters
| Technical Parameter of Mini Roll Laboratory Ball Mill |
| Model No. | QM-5 | QM-15 |
| Dimensions/Net Weight | 730*415*260mm/32KGS | 840*435*270mm/43KGS |
| Motor Power | 0.37kw | 0.75kw |
| Specifications of Frequency Converter | 0.4kw/220v | 0.75kw/220v |
| Rotation Speed Range | 60-570r/min±10rpm | 60-570rpm±10rpm |
| Adjustable Space Between Rollers | 120mm | 140mm |
| Max Load Per Jar | 35KGS | 80KGS |
| Sizes of Macthed Mill Jars | 0.5-5L | 10-15L |

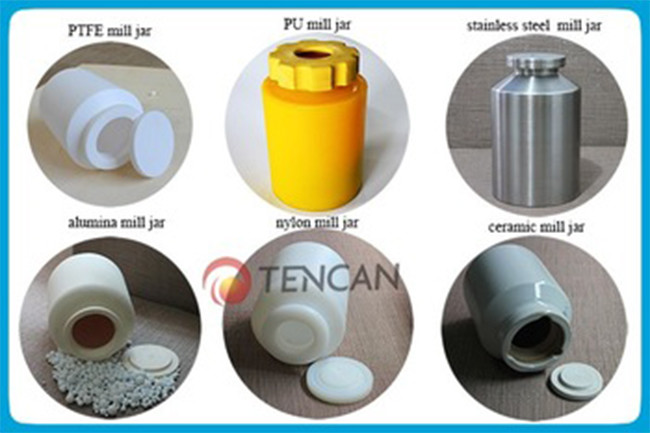

Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
