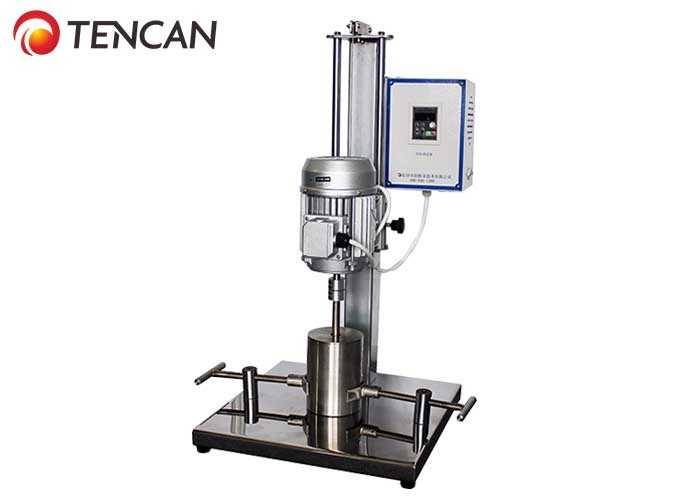

1-3L Mini Size Lab Stir Ball Mill For wet Grinding of Nano Powder Making
Overview of Lab Stir Ball Mill
Stirred ball mill mainly consist of jar with inner grinding media, stirring device and other auxiliary devices such as recycling device, cooling device, timing device, speed adjusting controller, and etc. Its advantages of high efficiency and fine granularity meet technological requirements of various processes. Stirred ball mill is a kind of ideal equipment that are used to crush new materials and research painting for universities, research centers and enterprises because of its features of small batch, low power and low price.
Working Principle of Lab Stir Ball Mill
When machine rotates at high speed under driving of main axis and grind media move irregularly at the same time, the grind material can be crushed, ground and sheared into fine granularity powder. The size, shape and matching ratio of the grind media can affect the grinding result. Generally speaking, the bigger the mill media is, the finer the grinding powder is. A proper match ratio of grind medias and proper adjustment of rotation speed can get better grinding effect.
Applications of Lab Stir Ball Mill
Lab stir ball mill widely applied in fields of zirconia silicate, zirconia, alumina oxide, ceramic, chemical, electronic material, magnetic material, paper-making, painting, non-metal minerals, new materials, coating, graphite, calcium carbonate, medicine, and so on.
Features of Tencan Lab Stir Ball Mill
1. Energy saving, high utilization rate .
2. Granularity adjustable.
3. Less vibrating, low noise.
4. Simple and compact structure, easy operated.
5. Meet requirements of various processes, realize continuous or intermittent production.
6. Water jacket for cooling & warming, easy to control grinding temperature .
7. Customized service available. Special functions such as timing, speed adjusting, recycling, temperature controlling can be selected and ordered.
8. A variety of grinding jars in different materials is available for customer’s option such as stainless steel, corundum ceramic, polyurethane, zirconia and so on.
Features of Tencan Lab Stir Ball Mill
| Technical Parameters of Tencan Lab Stir Ball Mill |
| Model No. | Rotate Speed
(RPM) | Total Volume
(L) | Max Load Volume
(L) | Power Supply | Available Jars | Feed Sizes
(mm) | Output Granularity
(μm) | Control Mode |
| JM-1 | 50-1400 | 1 | 0.35 | 220V/0.37KW | Stainless Steel Jar
Nylon Mill Jar
Corundum Mill Jar
PU Mill Jar
Zirconia Mill Jar
Agate Mill Jar
PTFE Mill Jar | ≤5mm | ≤1μm | Frequecny Converter |
| JM-2 | 50-1400 | 2 | 0.70 | 220V/0.37KW | ≤5mm | ≤1μm | Frequecny Converter |
| JM-3 | 50-1400 | 3 | 1.05 | 220V/0.37KW | ≤5mm | ≤1μm | Frequecny Converter |
Available Accessories of Mill Jars
Available Mill Balls
