Product Description:
Overview
The Horizontal Planetary Ball Mill is an essential apparatus used for advanced materials milling, fine grinding, powder mixing, nano powder production, new product development, and small-scale manufacturing. It boasts a number of advantages, including compact size, high efficiency, low noise, and comprehensive functionalities. The Tencan planetary ball mill is highly recommended for R&D institutions, universities, and enterprise laboratories looking to obtain fine powder samples. It features four working positions, allowing for the processing of up to four samples simultaneously. Additionally, when equipped with vacuum ball mill jars, it can also be used for grinding under vacuum conditions.
Working Principle

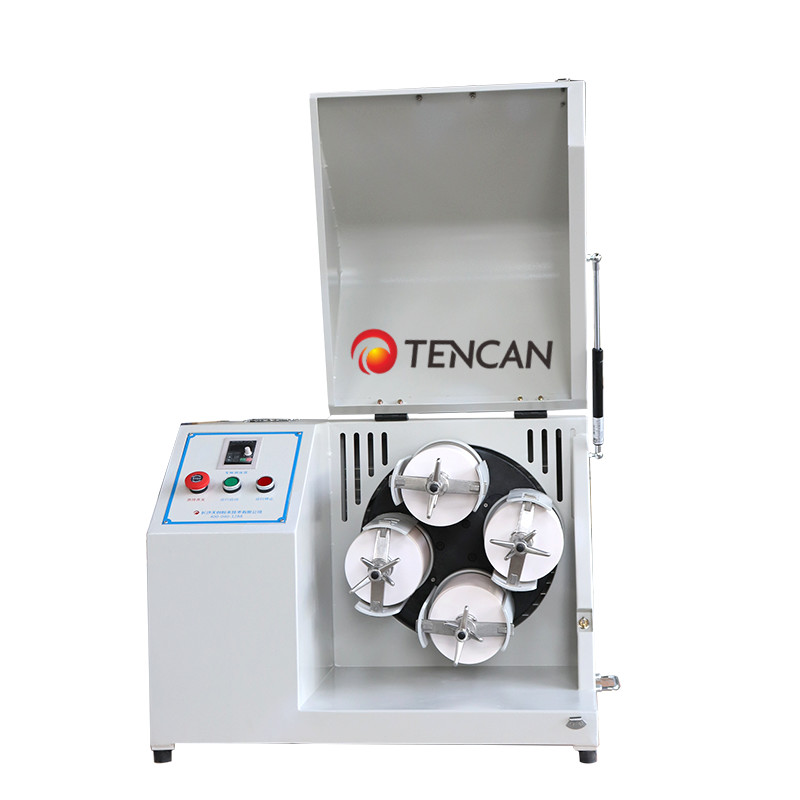

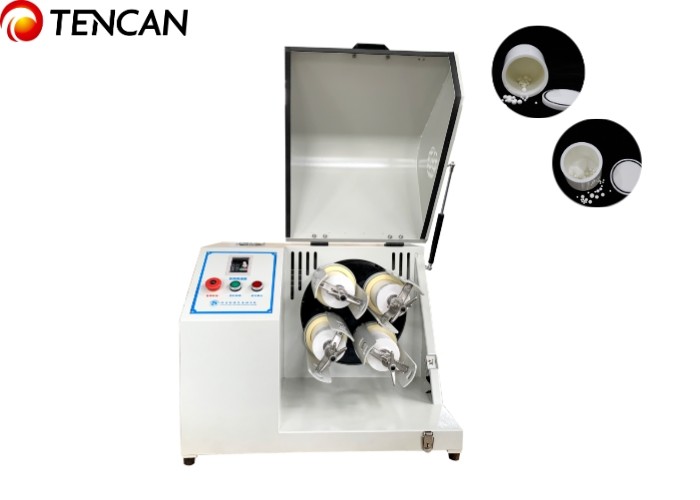

The Horizontal Planetary Ball Mill has four ball grinding tanks positioned on a single turntable. As the turntable rotates, the tanks' axes make planetary movements, causing the balls within the tanks to rapidly grind and mix samples. This machine can both crush and combine various materials using dry or wet grinding methods, and can achieve a minimum output powder granularity of 0.1μm. It is the perfect grinding equipment for preparing small-batch materials.
Features:
1. Simple to use.
2. Special gears minimize noise.
3. The mill pot's horizontal design prevents materials from sticking to the jar walls or sinking to the bottom.
Technical Parameters:
| Product Name | Horizontal Planetary Ball Mill |
| Key Word | Light-type Horizontal Planetary Ball Mill |
| Customized Services | Electronic Touch Panel |
| Working Model | 2 Or 4 Pots One Time |
| Rotate Speed | 70-670rpm |
| Accessories | Zirconia Jars & Zirconia Balls |
| Feeding Size | Less Than 10mm |
| Max Production Capacity | 0.66L |
| Warranty | 1 Year |
| Voltage | 220V-50Hz |
| High-Energy Ball Mill | Planetary Ball Milling Device |
| Ball Milling Machine |
Applications:
The horizontal planetary ball mill is a versatile machine used in various industries such as geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, and environmental protection. It is particularly well-suited for the production of electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalysts, phosphors, long afterglow phosphors, rare earth polishing powder, and electronic glass. Additionally, it is also useful for producing powder for fuel cells, Zinc Oxide varistors, piezoelectric ceramics, nano materials, wafer ceramic capacitors, MLCCs, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrites, Mn-Zn ferrites, and more.
Customization:
Customized Service for Planetary Ball Mill
Brand Name: TENCAN
Model Number: WXQM-2
Place of Origin: Changsha, Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood Case & Foam
Delivery Time: 7-15 days
Payment Terms: T/T, Western union
Supply Ability: 350 Sets per Month
Working Model: 2 or 4 Pots One Time
Output Size: Minimum 0.1μm
Feeding Size: Less Than 10mm
Power: 0.75KW
Rotate Speed: 70-670rpm
Key Features:
- Ball Mill Grinding Machine
- Planetary Milling Ball Mill
- Ball Mill Grinding Machine Customization
FAQ:
1. Are you manufacturer or trade company?
We are one of leading manufacturers in China, which focuses on designing, manufacturing and selling all kinds of powder grinding equipment including planetary ball mills, roll ball mills, stir ball mills, crushers, mixers and sieve shakers as well as accessories matched with machines.
2. What is your delivery time if I place an order?
We often have a great deal of regular machine models and accessories in stock available. If you want to order our regular items, it takes about 1-3 working days to finish packing and inspection, Generally speaking we can make shipment of regular order from our warehouse within 3-7 working days after payment is received.
3. What questions about requirements are required to provide to us if you inquiry about ball mills?
Answers:
* What material is needed to be grind? By wet or dry method?
* How many liters of material are required to be ground per batch?
* What is feed size (mm) of starting materials?
* What final particle size (μm or nm or meshes) is required by grinding?
* Is material allowed with metal impurity contamination while grinding?
4. Can you provide testing service of grinding experiment before we place an order?
Yes. sample grinding experiment is available for any customer who is willing to send materials to us, and grinding experiment of sample is always free of charge.
Delivery address of material sample:
Changsha Tianchuang Powder Technology Co., Ltd
Room 804, 2nd Building, No.68 Luositang Road, Changsha Economic and Technological Development Zone, Changsha, Hunan, China 410100
Contact Name: Aivin Ai Mobile Phone: +86 13548659522
5. What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you can send Email to: service@lab-mills.com for after-sale services.
6. What is MOQ (Minimum Order Quantity) of one order?
One set of machine or one piece of accessories (like ball mill jar and balls) are acceptable.
